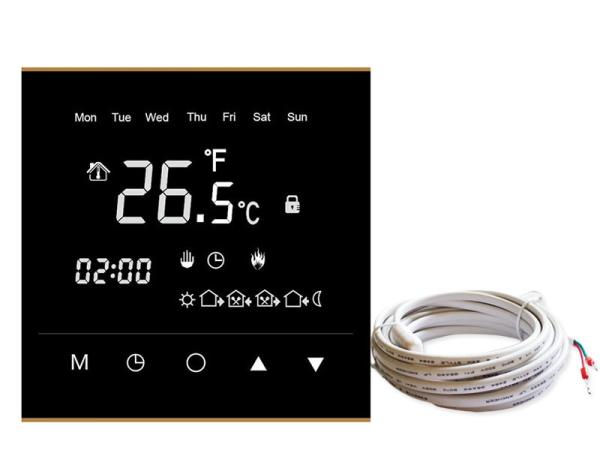

Household Wireless Heating Thermostat 6 Period Programmable AC230V

Household Heating Systems Floor Heating Wired 6 Period Programmable Thermostat
Touch Screen Period Programming Thermostat Weekly circulation, it is possible to set 6 periods called events each day with corresponding pre-set temperatures, also you can select "period control mode" or "manual mode" according to your individual requirements.

Technical data


Advanced setting (qualified person preferred)
You can press "M" and"Time"and hold for 5 seconds at the same time to enter the mode of advanced setting when the thermostat is turned off. The following seven function can be chosen by pressing "M".


Symbol		Setting	Up or Down
1	ADJ	Temperature calibration	Adjust measured temperature
2	SEN	Sensor mode	IN: built-in sensor OUT: floor sensor ALL: both sensors (floor sensor is the limit sensor)
3	LIT	Limitation temperature	Adjust limitation value, Limitation range:5℃~50℃
4	DIF	Switching differential	Adjust switching differential
5	LTP	Antifreeze function	Turn on/off Anti-frozen function
6	PRG	Set vacation mode	2: 5/2 day mode 1: 6/1 day mode 0: 7 day mode
7	RLE	Potential-free output	00: in same way 01: in different way
8	DLY	Potential-free output delay	Change the delay time
9	HIT	Max. Temperature	Max. Limitation temperature set point (99℃)
10	AFAC	Reset to factory settings	Programming parameters will be reset to factory settings when symbol "" appears


Writing Diagram

Sensor failure
Please select the right sensor mode when operation, it will display the "Err" symbol on screen far sensor failure, thermostat must be checked till the fault is eliminated.



Installation Advice
All  thermostat installations should be carried out by a fully qualified electrician.
To avoid electrical shock and to prevent damage to the thermostat,disconnect the power supply before beginning work.
Electrical wiring regulations prohibit the thermostats from being installed in bathrooms;if using the thermostat in a bathroom,install the thermostat on an internal wall outside the bathroom as close to matting power supply cables as possible.
IMPORTANT:Do not switch on the system before the substrate(e.g.concrete)and floor covering(e.g.tile adhesive)are completely dry to avoid cracking.
